Wick fixing machine (for glass jar)
XGPJJ - 2000
For wick cutting, clamping, and sticking wick holders to glasses
Container Diameter: 140mm (or, 100*100mm square)
Container height: 40-200mm
Wick tube external diameter: 3mm max.
Wick holder external diameter: 14mm max.
Wick diameter: 1.8-2.5mm
Wick length: 150mm max.
Production rate: 2,000pcs/h max.
Operation and control: Photocell (PLC)
Power supply: 380/220V, 50Hz, 3.57kw
Compressed air: 0.6MPa, 250L/min.
Dimension: L4,220/W1,300/H2,000mm
Weight: 295kg
Container Diameter: 140mm (or, 100*100mm square)
Container height: 40-200mm
Wick tube external diameter: 3mm max.
Wick holder external diameter: 14mm max.
Wick diameter: 1.8-2.5mm
Wick length: 150mm max.
Production rate: 2,000pcs/h max.
Operation and control: Photocell (PLC)
Power supply: 380/220V, 50Hz, 3.57kw
Compressed air: 0.6MPa, 250L/min.
Dimension: L4,220/W1,300/H2,000mm
Weight: 295kg

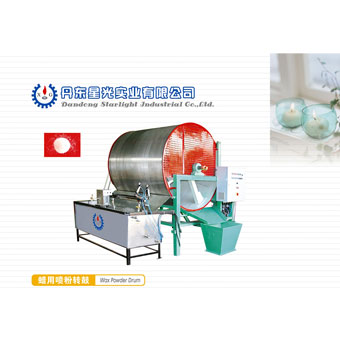

powdering drum
XGLYZG - 500
Output: 500kg/h
Power supply: 380/220V, 50Hz, 12kw
Cooling water: 15m3/h, (12-15 degree C)
Compressed air: 0.6-0.8Mpa
Dimension: L3400/W4080/H2600mm
Weight: 2980kg
Power supply: 380/220V, 50Hz, 12kw
Cooling water: 15m3/h, (12-15 degree C)
Compressed air: 0.6-0.8Mpa
Dimension: L3400/W4080/H2600mm
Weight: 2980kg

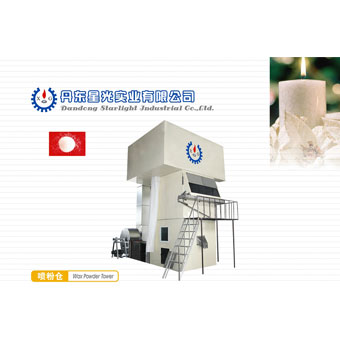

powdering tower
XGPFC - 800A
Tower type powdering machine. For indoor use only.
Output: 800-850kg/h
Power supply: 380/220V, 50Hz, 26.6kw
Dimension: L8150/W4620/H7100mm
Weight: appr. 6550kg
Output: 800-850kg/h
Power supply: 380/220V, 50Hz, 26.6kw
Dimension: L8150/W4620/H7100mm
Weight: appr. 6550kg

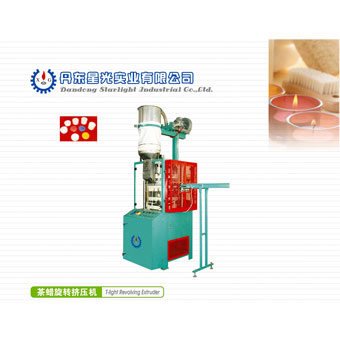

Automatic T-lights rotary press
XGCLJ - 3.0B - 20
Number of moulds: 20
Tealight diameter: 37.6mm; Height:8-20mm; Weight:7-18g
Power supply: 380/220V, 50Hz, 7.7kw
Output rate: 30,000pcs/h (max. 35,000pcs/h)
Dimension: L1040/W880/H2960mm
Weight: 2,000kg
Tealight diameter: 37.6mm; Height:8-20mm; Weight:7-18g
Power supply: 380/220V, 50Hz, 7.7kw
Output rate: 30,000pcs/h (max. 35,000pcs/h)
Dimension: L1040/W880/H2960mm
Weight: 2,000kg

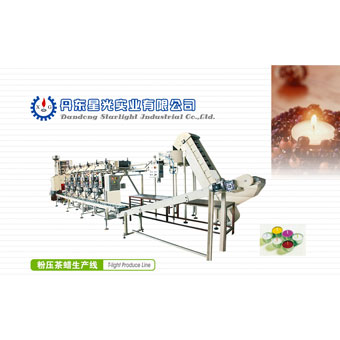

T-lights production line
XGLZX - 3.0B
Fully automatic, including T-lights rotary press, Aluminium cup sorting machine, wick assembly machine, Aluminium cup conveyor, wax block conveyor, output conveyor,
Tealight diameter: 37.6mm
T-light height: 20mm max.
Wick holder external diameter: 14mm max.
Wick external diameter: 1.8-2.2mm
Wick length: 18-68mm
Output rate: 30,000-36,000pcs/h
Dimensions: L11,085/W2,225/H3,520mm
Weight: 4,950kg
Tealight diameter: 37.6mm
T-light height: 20mm max.
Wick holder external diameter: 14mm max.
Wick external diameter: 1.8-2.2mm
Wick length: 18-68mm
Output rate: 30,000-36,000pcs/h
Dimensions: L11,085/W2,225/H3,520mm
Weight: 4,950kg

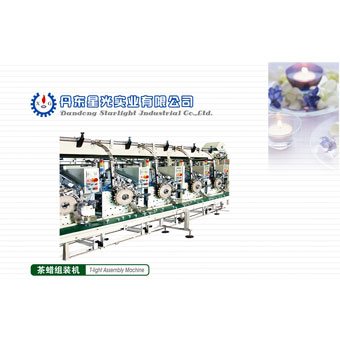

T-lights assembly machine
XGQZX - 3.0B
Tealight diameter: 37.6mm
T-light height: 12-20mm
Wick holder core tube external diameter: 3mm
Wick holder external diameter: 14mm
Wick external diameter: 1.8-2.2mm
Wick length: 18-68mm
Output rate: 7,200pcs/h (max. 9,600pcs/h)
Dimensions: L1,380/W830/H1,400mm
Weight: 269kg
T-light height: 12-20mm
Wick holder core tube external diameter: 3mm
Wick holder external diameter: 14mm
Wick external diameter: 1.8-2.2mm
Wick length: 18-68mm
Output rate: 7,200pcs/h (max. 9,600pcs/h)
Dimensions: L1,380/W830/H1,400mm
Weight: 269kg

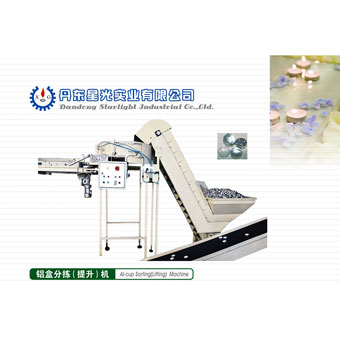

Cup sorting machine
XGLF - B
Al-cup diameter: 45mm max.
Al-cup height: 20mm max.
Power supply: 380/220V, 50Hz, 0.55kw
Output rate: 30,000-36,000pcs/h
Dimensions: L3,000/W1,040/H2,490mm
Weight: 1,100kg
Al-cup height: 20mm max.
Power supply: 380/220V, 50Hz, 0.55kw
Output rate: 30,000-36,000pcs/h
Dimensions: L3,000/W1,040/H2,490mm
Weight: 1,100kg

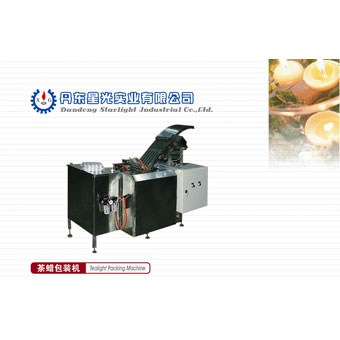

T-lights packing machine
T-Lights Packer
Tea-lights range: Dia.37mm hight 18mm
Package range: 5*4*5 (100pcs/package)
Power supply: 380/220V, 50Hz, 0.01kw
Production rate: 90 package/h (9,000pcs/h)
Dimenstions: L1,402/W852/H1,339mm
Operation: PLC control
Package range: 5*4*5 (100pcs/package)
Power supply: 380/220V, 50Hz, 0.01kw
Production rate: 90 package/h (9,000pcs/h)
Dimenstions: L1,402/W852/H1,339mm
Operation: PLC control
