PARAFFIN WAX

CANDLE MACHINERY

OTHERS

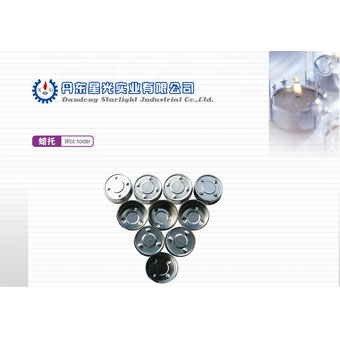

Aluminium cup

Made to client’s requests

>>more

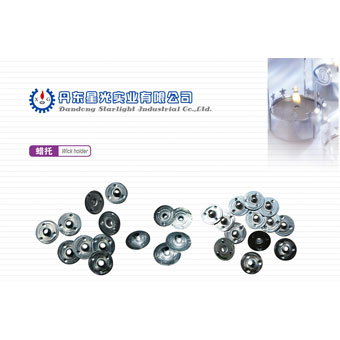

Wick holder

Dia. 12.5mm
Dia. 14mm
Dia. 20
Can be made to client’s requests

>>more

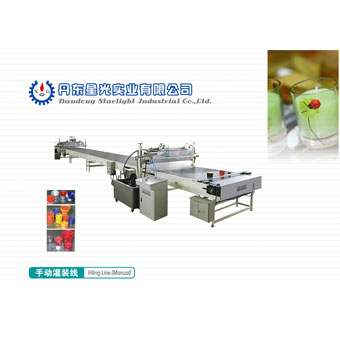

Filling line (manually)

XGGZJ/S

Manually place containers. automaticly filling, transferring, pre-heating, surface smoothing, and cooling.

Container height: 250mm max.
Dimesions: L800+conveyor length/W1,350/H1860mm
Conveyor length and wide be customized
Power supply: 380/220V, 50Hz
Weight: Apr. (length of the machine)* 40kg

>>more

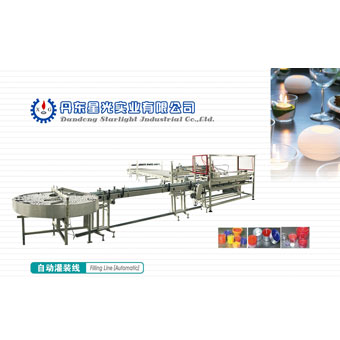

Automatic filling line

XGGZJ/Z

Automaticly place containers, transfer, pre-heating, filling, surface smoothing, and cooling.
Number of filler be customized
Nozzle diameter: 2/3/4/5/7 mm
Belt width be customized (In multiples of 250mm)
Container height: 40mm max. (Manually placing 250mm max.)
Dimesions: L800+conveyor length/W6,500/H1860mm
Conveyor length and wide be customized
Weight: Apr. 1000+(length of the machine)* 40kg

>>more

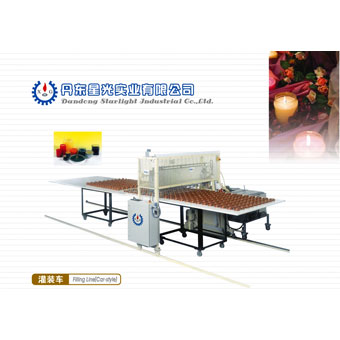

filling vehicle

XGGZC

Moveable, can be used to fill containers in big size.
Number of nozzle: 20
Diameter of the nozzles: 5mm
Maximum container external diameter: 115mm
Maximum container height: 250mm
Production rate: 2,000pcs/h
Demension: L4,000/W2700/H1800mm
Weight: 195kg

>>more

Wick fixing machine (for Al-cups)

XGDJJ - 6000

For wick cutting, clamping, and sticking wick holders to cups
Cup diameter: 37.5mm, 60mm (depends on faceplate used)
Cup height: 14-30mm
Wick tube external diameter: 3mm max.
Wick holder external diameter: 14mm max.
Wick diameter: 1.8-2.5mm
Wick length: 60mm max.

Power supply: 380/220V, 50Hz
Rated output: 6,000pcs/h
Dimension: L1,380/W1,195/H1,395mm
Weight: 395kg

>>more
