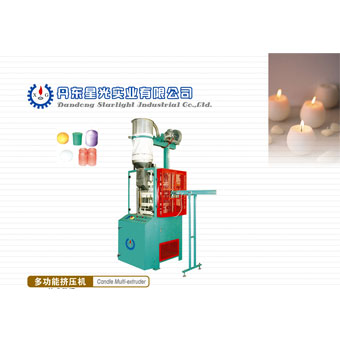

Used for production of small pillar candles, abnormity shapped votive candles, floating boll candles, tea-light candles etc.

Production range:

Tea-light candles:  Dia. 37mm/Hi.6-26mm/Wt.6-25g
Small pillars:  Dia.35-50mm/Hi.30-60mm/Wt.25-55g
Abnormity shapped votive candles:  Dia.35-45mm/Hi.48mm/Wt.46-50g
Floating ball candles:  Dia.35-50mm/Hi.18-28mm/Wt.15-30g

Production rate:

Tea-light candles:  6-18g, 12,000pcs/h; 20-25g,18,000pcs/h
Small pillars: 12,000pcs/h (more then 50g)
Abnormity shapped votive candles: 10,000pcs/h
Floating ball candles: 18-25g, 16,000pcs/h

Power supply: 380/220V, 50Hz

Main motor: 5.5kw

Supplemenary motor: 3.7kw
Dimension: L1,200/W1,080/H3,360mm
Weight: 2,000kg

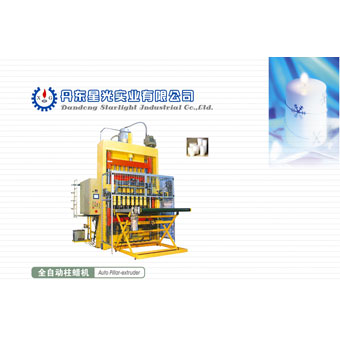

Application: Pillar candles, Ball candles
Pillar candles: Dia.60-100mm  Height: 50-300mm
Ball candles: Dia.60-150mm
Production rate:

Dia.50-70mm Height below 150mm, 1200pcs/h
Dia.70-80mm Height below 150mm, 800pcs/h
Dia.100mm Height below 150mm, 600pcs/h
(For candles more then 150mm hight, the rate will be declined accordingly)
Power supply: 380/220V, 50Hz

Main motor: 15kw

Supplementary motor: 5kw
Dimensions: L3,200/W3,000/H4,000mm
Weight: Aprox. 4,600kg

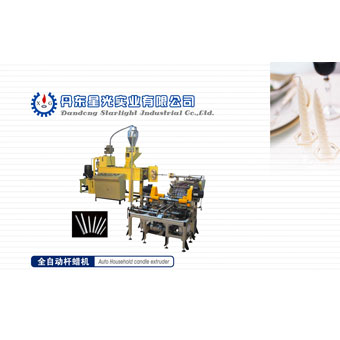

Application: Straight household candles, straight stripe candles, roof and bottom can be modified as per requests. Also be used to make candle flan for moulding pillar candle with big diameter.

Straight candles: Dia.12-25mm, Length:100-300mm

Candle flans: Dia.30-50mm, Length: Any length taken manually

Production rate: Approx.10,000pcs/h for length not more then 200mm

Power supply: 380/220V, 50Hz, Main motor:

22kw, Supplementary motor:6.8kw
Dimensions: L5,800/W7,600/L3,000mm
Weight: Aprox. 4,200kg

10 ton press with 2 molds, or

16 ton press with 2 molds

Production rate: 240pcs/min.

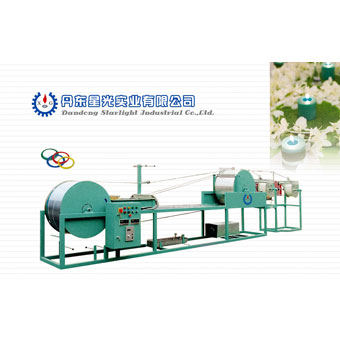

Wick diameter: 1.2-2.0mm; (1.0-3.0mm)

Power: 0.75kw

Output: 6000m/h

Dimension: L7000/W1100/H1700mm

Weight: 470kg

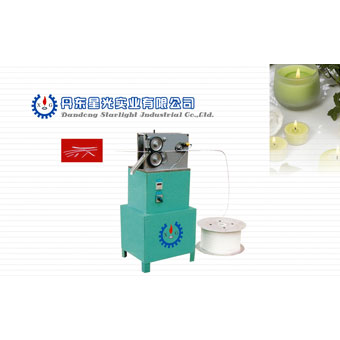

Wick length: 10-245mm

Output: 10200pcs/h (high speed); 8100pcs/h (low speed)

V-belt: 860-899 (Mode A); 1350 (Mode B)

Wick diameter:  knife tube #1:  1.7-2.5mm

knife tube #2:   2.6-3.1mm

Dimension: L470/W390/L1030mm

Weight: 163kg
